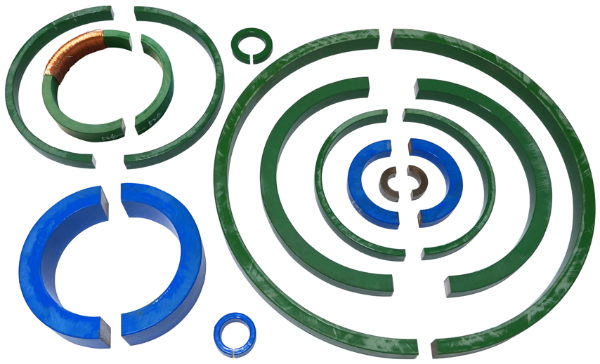

Toroidal cut core for CT
Product name: Split core for current transformer.
Material: Nanocryatalline
CORE DIMENSION | COATING DIMENSIONS | Ae | Le | Power | AL | ||
OD mm | ID mm | H mm | (cm2) | cm | ¢Max Out | 1KHz 1.0V | |
ref | ref | ref | typ | typ | 50Hz Max W | μH Min | |
CTC55*40*10P | 56.5 | 38 | 11.5 | 0.62 | 14.9 | 0.8 | 6.5 |
CTC55*40*15P | 56.5 | 38 | 11.5 | 0.94 | 14.9 | 1.9 | 9.7 |
CTC60*45*10P | 61.5 | 43 | 11.5 | 0.62 | 16.4 | 0.8 | 6.2 |
CTC60*45*15P | 61.5 | 43 | 16.5 | 0.94 | 16.4 | 1.9 | 9.3 |
CTC65*50*10P | 66.5 | 47.5 | 11.5 | 0.62 | 18.0 | 0.8 | 5.8 |
CTC65*50*15P | 66.5 | 47.5 | 16.5 | 0.94 | 18.0 | 1.9 | 8.7 |
CTC75*55*10P | 76.5 | 53.5 | 11.5 | 0.83 | 20.4 | 1.4 | 7.0 |
CTC75*55*15P | 76.5 | 53.5 | 16.5 | 1.25 | 20.4 | 3.3 | 10.5 |
CTC75*55*20P | 76.5 | 53.5 | 21.5 | 1.66 | 20.4 | 5.9 | 14.0 |
CTC75*55*25P | 76.5 | 53.5 | 26.5 | 2.08 | 20.4 | 9.2 | 16.0 |
CTC85*55*15P | 86.5 | 53.5 | 16.5 | 1.88 | 21.9 | 7.6 | 13.5 |
CTC85*55*20P | 86.5 | 53.5 | 21.5 | 2.5 | 21.9 | 13.5 | 17.5 |
CTC90*60*20P | 91.5 | 57.5 | 21.5 | 2.5 | 23.5 | 13.5 | 16.5 |
CTC95*65*25P | 96.5 | 62.5 | 26.5 | 3.7 | 25.1 | 29 | 22.5 |
CTC100*70*25P | 101.5 | 67.5 | 26.5 | 3.1 | 26.6 | 20 | 18.0 |
CTC130*90*30P | 131.5 | 87.5 | 31.5 | 5.0 | 34.5 | 53 | 22.5 |
REMARK: We accept customized dimension and spec.
